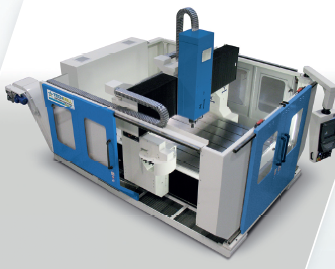

    LaborMidi is a CNC Working Center with monolithic basementand mobile “gantry” porta,l with double sliding guides for both sides; The basic 3-axis version is with vertical head, ideal for machining panels composites and/or aluminum, while a 5-axis version is also avaiilable. Both versions are arranged to be completely “carterized” as to comply with most severe safety regulations.



    Axis strokes
    speed
    X 2000-3000-4000 mm
    80 mt/1’
    Y 2000-15.000 mm
    80 mt/1’
    Z 300-750 mm
    40 mt/1’
    A (*) +/- 120°
    180°/sec
    C (*) +/- 365°
    180°/sec


    Variable depending on the head type

    Spindle features
    Power
    15-40 kW
    Torque
    13.5-40 Nm
    Speed
    6000-30.000 rpm
